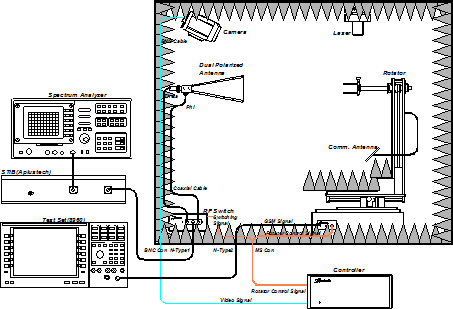

Radiated Harmonic Spurious Emission Test

▶ Test System : 2G and 3G, LTE, Wi-Fi

▶ Test Frequency : 1 ~ 18GHz

▶ Test Mode

   · Harmonic 2D

   · Harmonic 3D

   · Full Sweep

▶ RSE Test Interface Box

   · Frequency Range

       - Low Band : 1.3 ~ 15GHz

       - Middle Band : 2.8 ~ 18GHz

       - High Band : 4.8 ~ 18GHz

   · LNA Gain : 50dB±3.0dB

   · Carrier Rejection : 80dB

▶ System Repeatability (Tolerance) : ±2.0dB

▶ Spectrum Analyzer : Keysight PSA
